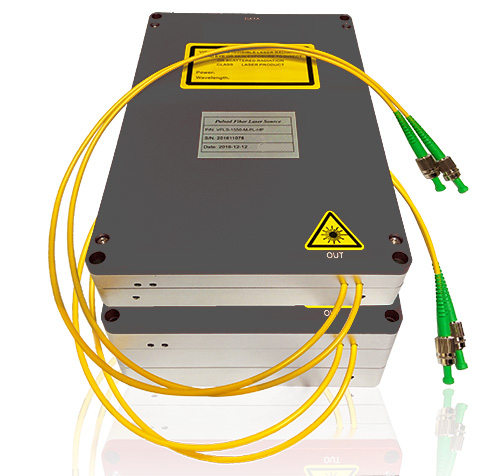

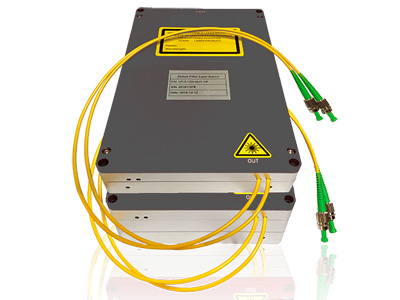

1550nm Long Pulsed Single Frequency Fiber Laser, CKLIS-HP (Long Distance, Polarization Maintaining)
1550nm Long Pulsed Single Frequency Fiber Laser, CKLIS-HP (Long Distance, Polarization Maintaining)
Laser modules and components, Fiber laser modules
Inquiry
Features
Eye-safe operating wavelength: 1550nm
Single pulse energy: up to 150uJ
Repetition rate adjusting range: 5-20kHz
Pulse width: 100-3000ns
Near diffraction-limited beam quality
High polarization extinction ratio (PER)
Specifications
Parameter
Unit
Specification
Min.
Typ.
Max.
Part No.
CKLIS-1550-M-SF-HP
Center Wavelength
nm
1545
1550
1565
Peak Power @200ns pulse width
W
-
-
750
Pulse Energy @200ns,20kHz
uJ
-
150
160
Pulse width
ns
100
200/400/800
3000
Repetition Rate
kHz
5
-
20
Beam Quality
M²
-
< 1.3
1.5
Output polarization
Linear polarization
PER
dB
20
>23
-
Output Isolation
dB
50
-
-
Output Power Stability
%
-
±0.5
±1
Output Fiber Type
PLMA-GDF-25/300
Output Fiber Length
m
0.5
-
1
Output Fiber Connector
FC/APC
Control interface
RS232
Power Supply
VDC
12~14
Operating Temperature
°C
-20
50
Storage Temperature
°C
-40
70
Cooling Mode
Air-cooled
Dimensions
mm
200x135x60
Techwin is known as an expert company in developing and manufacturing of fiber lasers, fiber amplifiers and fiber sources. We also strive to provide our customers with custom fiber laser solutions suited for your applications. All of our high-power fiber lasers and amplifiers are manufactured following a rigorous quality management system. We are more than happy to share our laser technology with worldwide customers, and committed to earn the ongoing trust of our customers with our industrial fiber lasers coupled with expert support and service in various industrial segments.
